Operating the Taekwon-do ITF scoreboard - Pattern
Start
1
/28

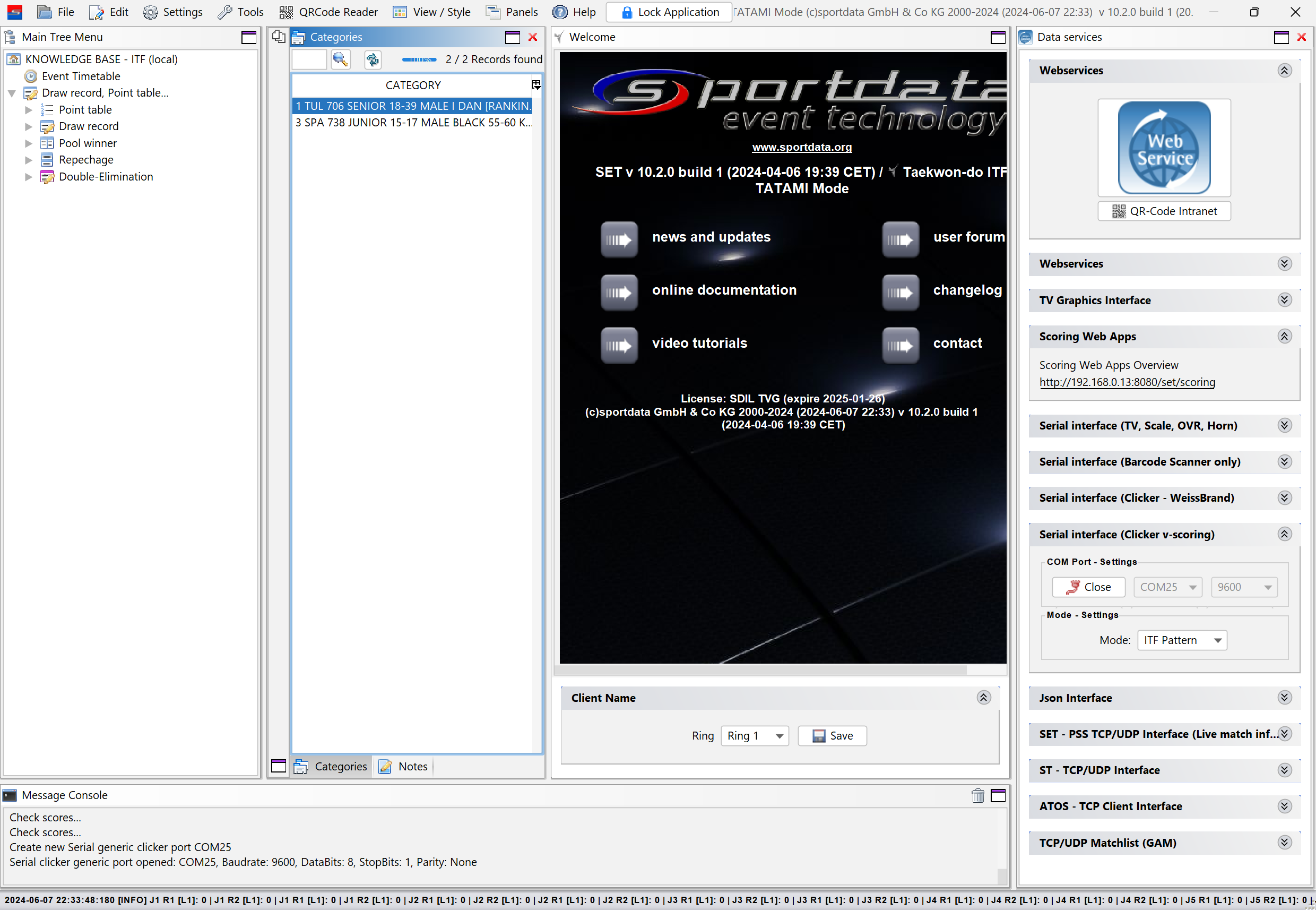

Open a category by double-clicking on it.

2
/28

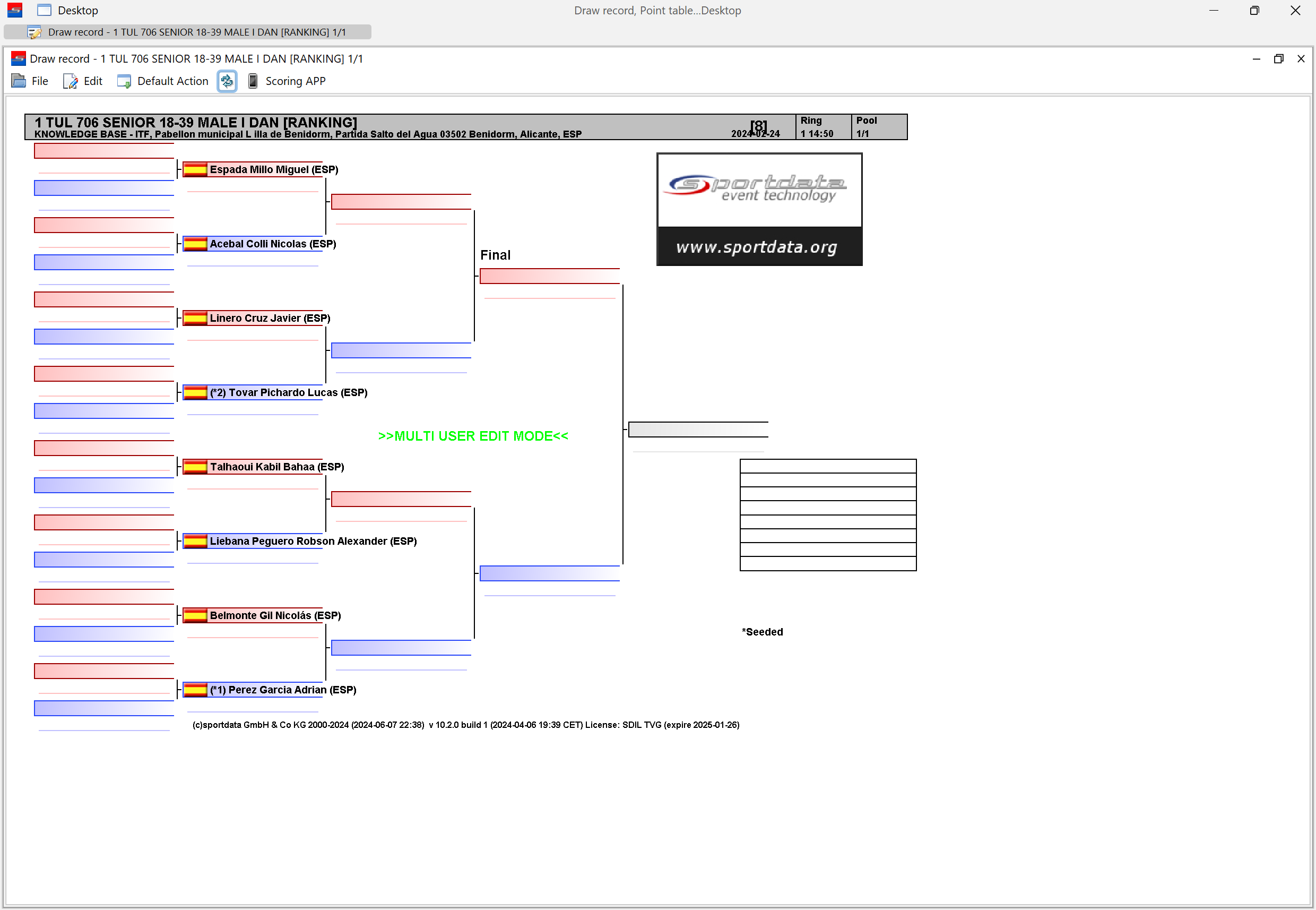

Open a match by clicking on a name.

3
/28

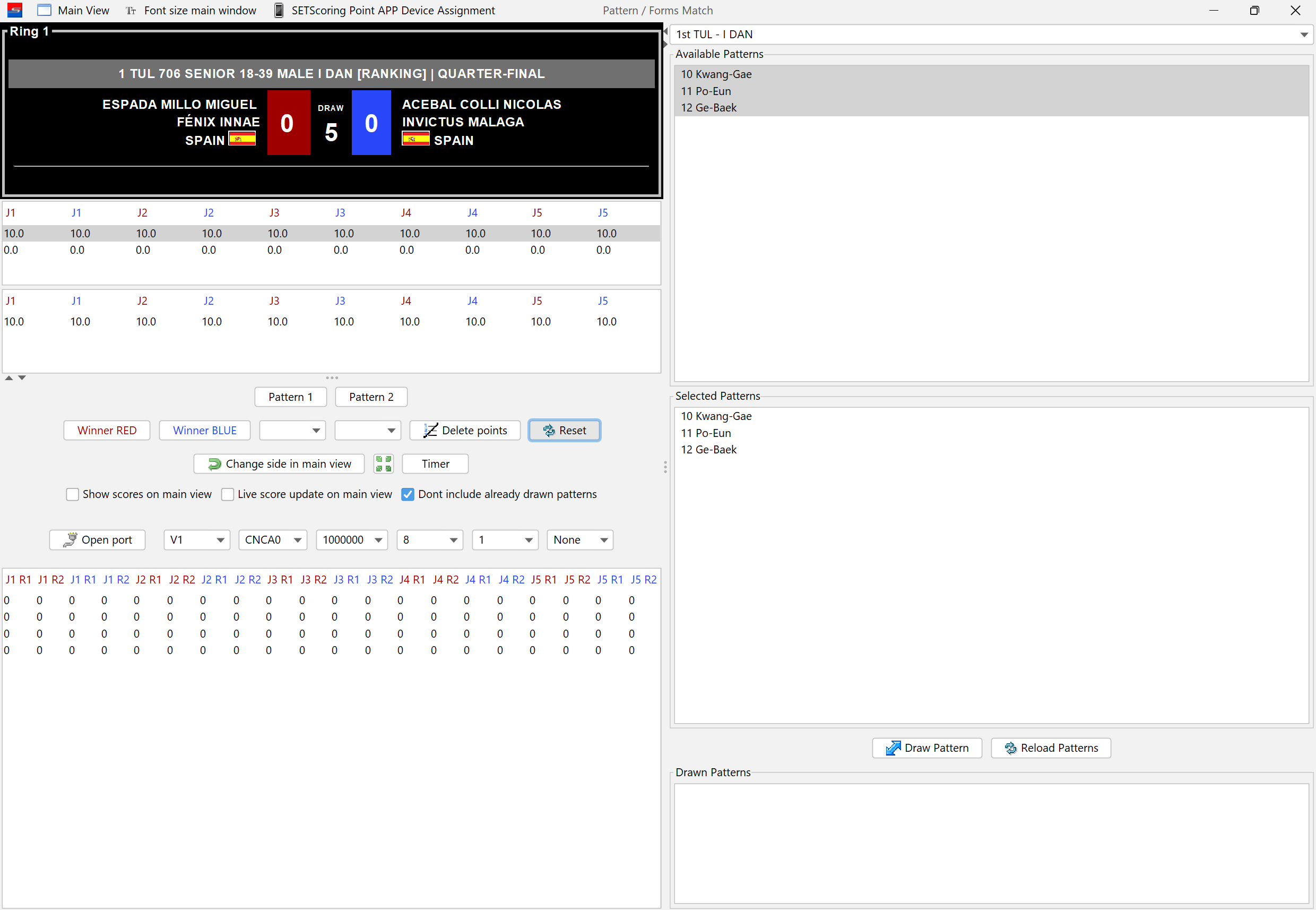

Always reset the match before starting!

4
/28

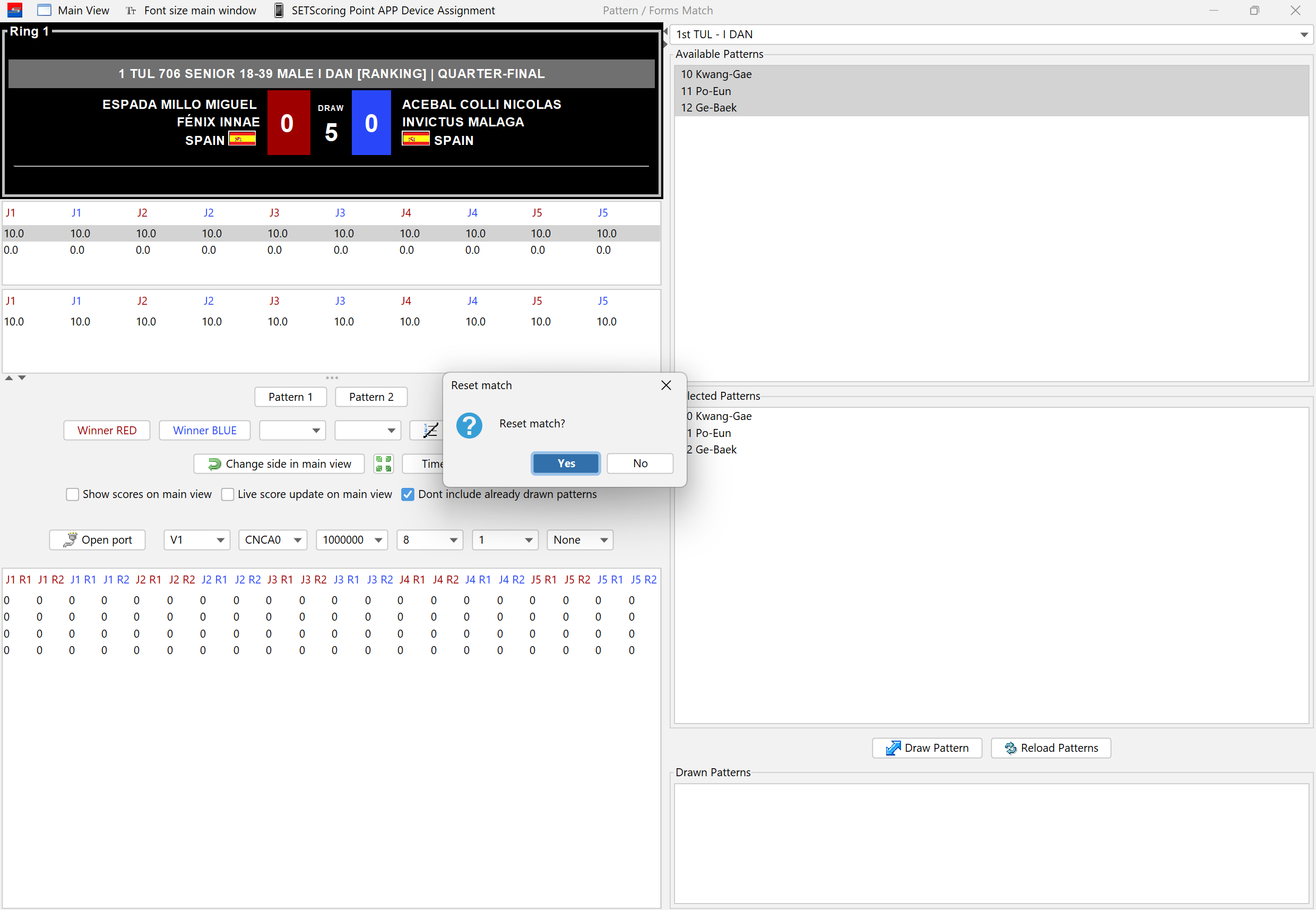

Confirm the match reset by clicking on "Yes".

5
/28

1st Pattern

Ensure the correct patterns are selected. Click on "Draw Pattern".

6
/28


Confirm the drawn pattern. It will be displayed on the screen once "Yes" is clicked.

7
/28

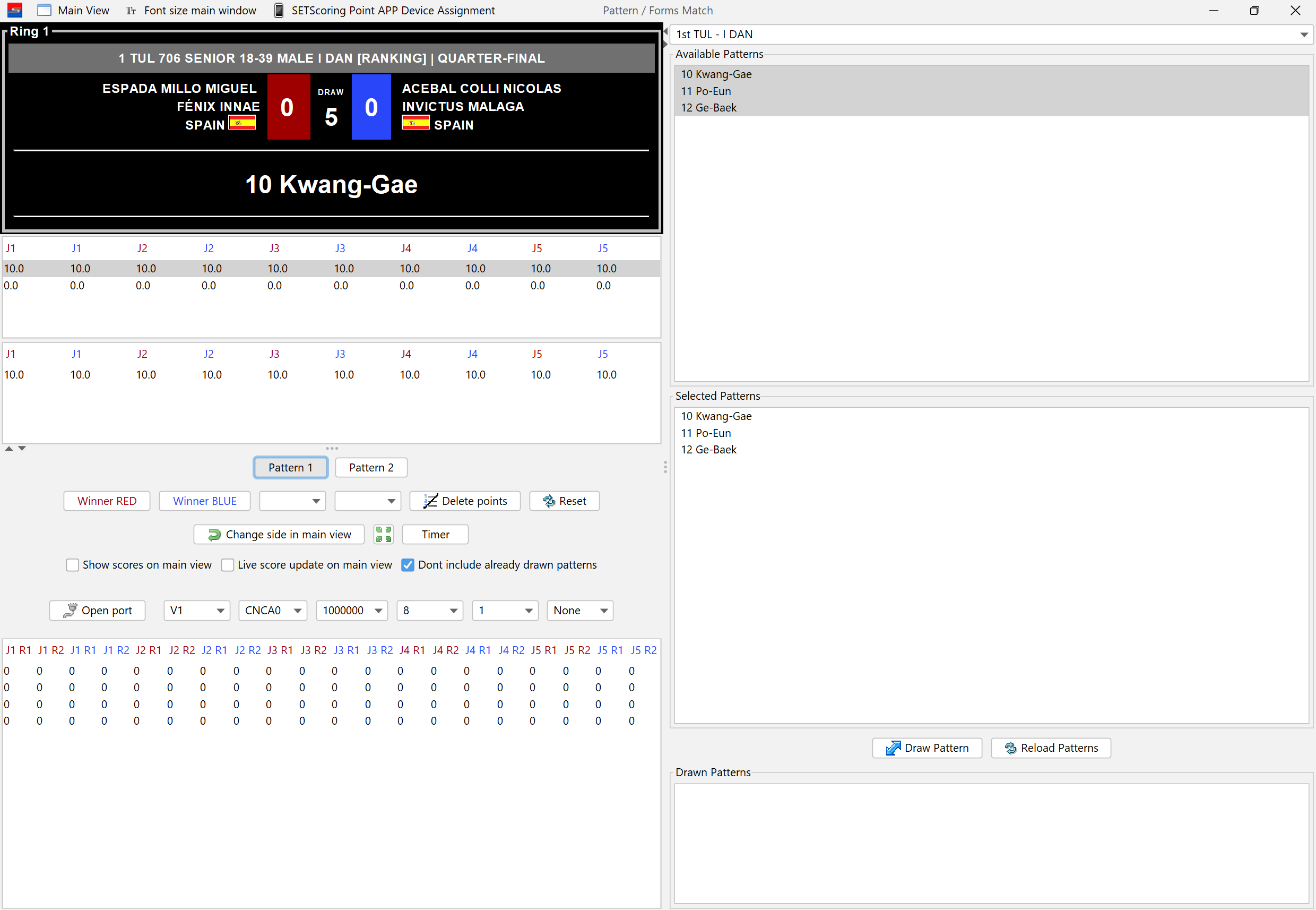

Click on "Pattern 1" to open scores window.

8
/28

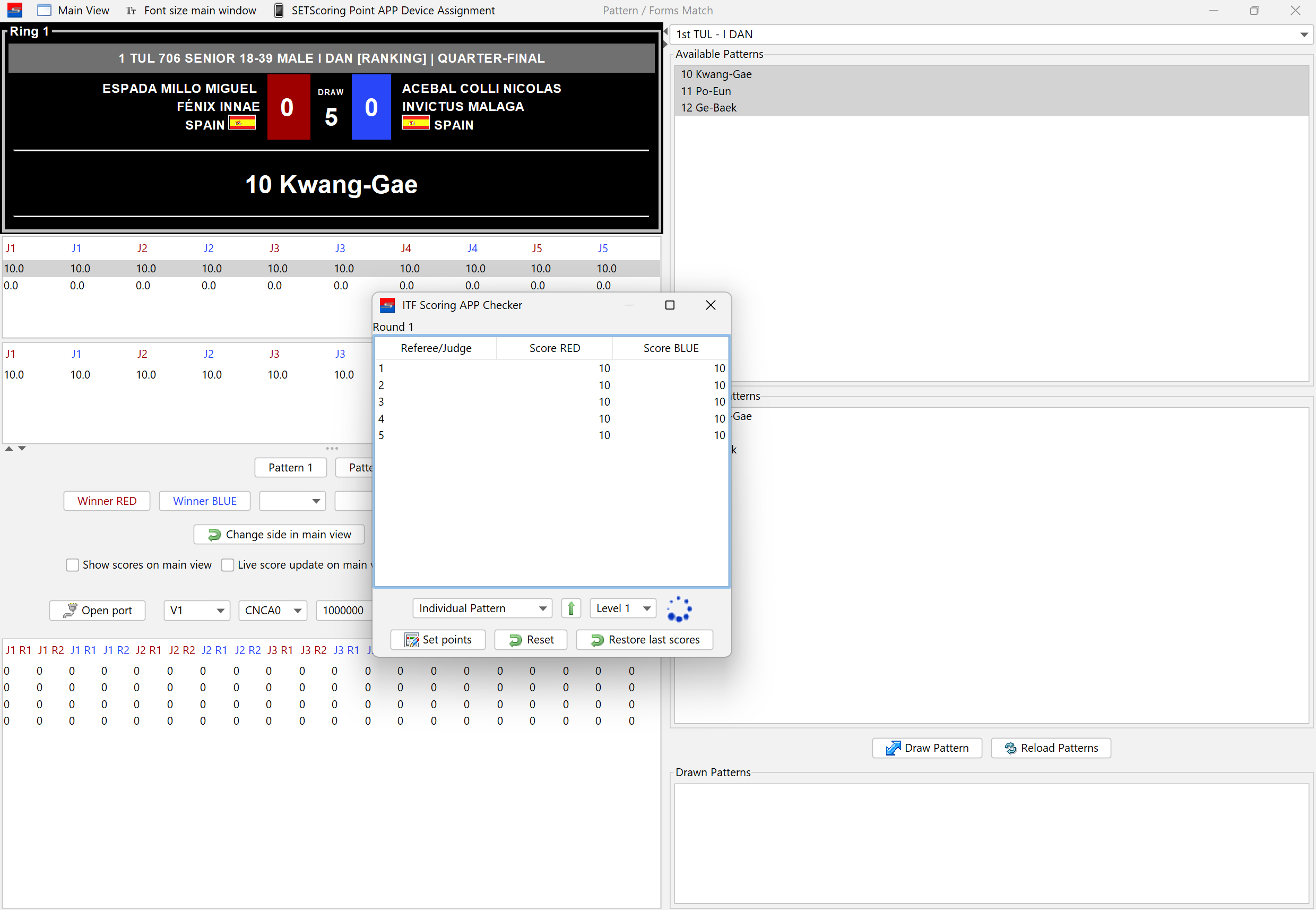

Judges are now able to start scoring.

Next
9
/28


If there is only one level, click on "Set Points" and close the window.

10
/28


If there is more than one level, click on the dropdown menu and select the next level when the main judge indicates, after the pattern is completed.

11
/28


The green arrow can also be clicked to proceed to the next level.

12
/28

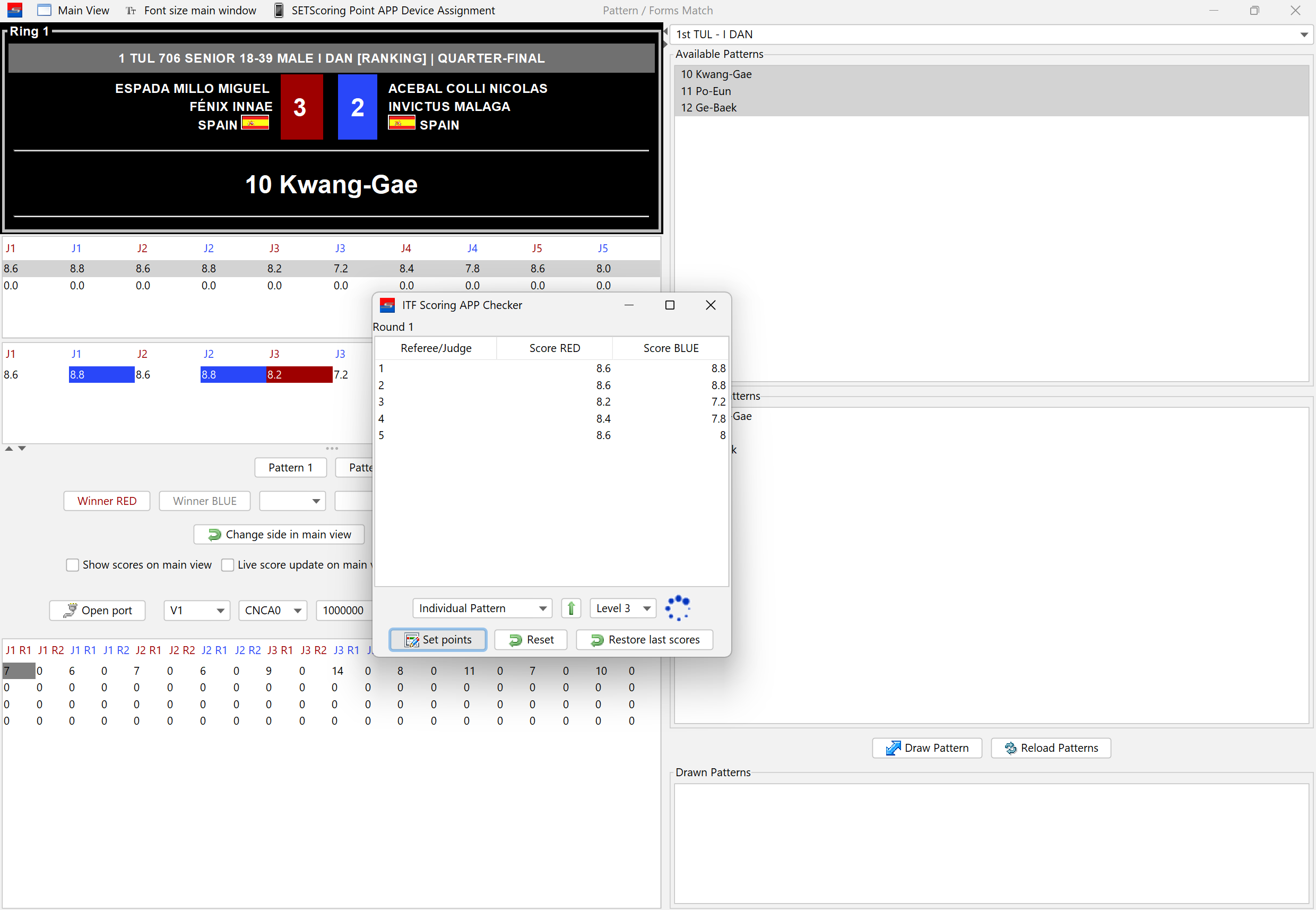

When scoring for Pattern 1 is finished, click on "Set Points". The scores will then be displayed on the main screen.

13
/28


Close the window.

14
/28

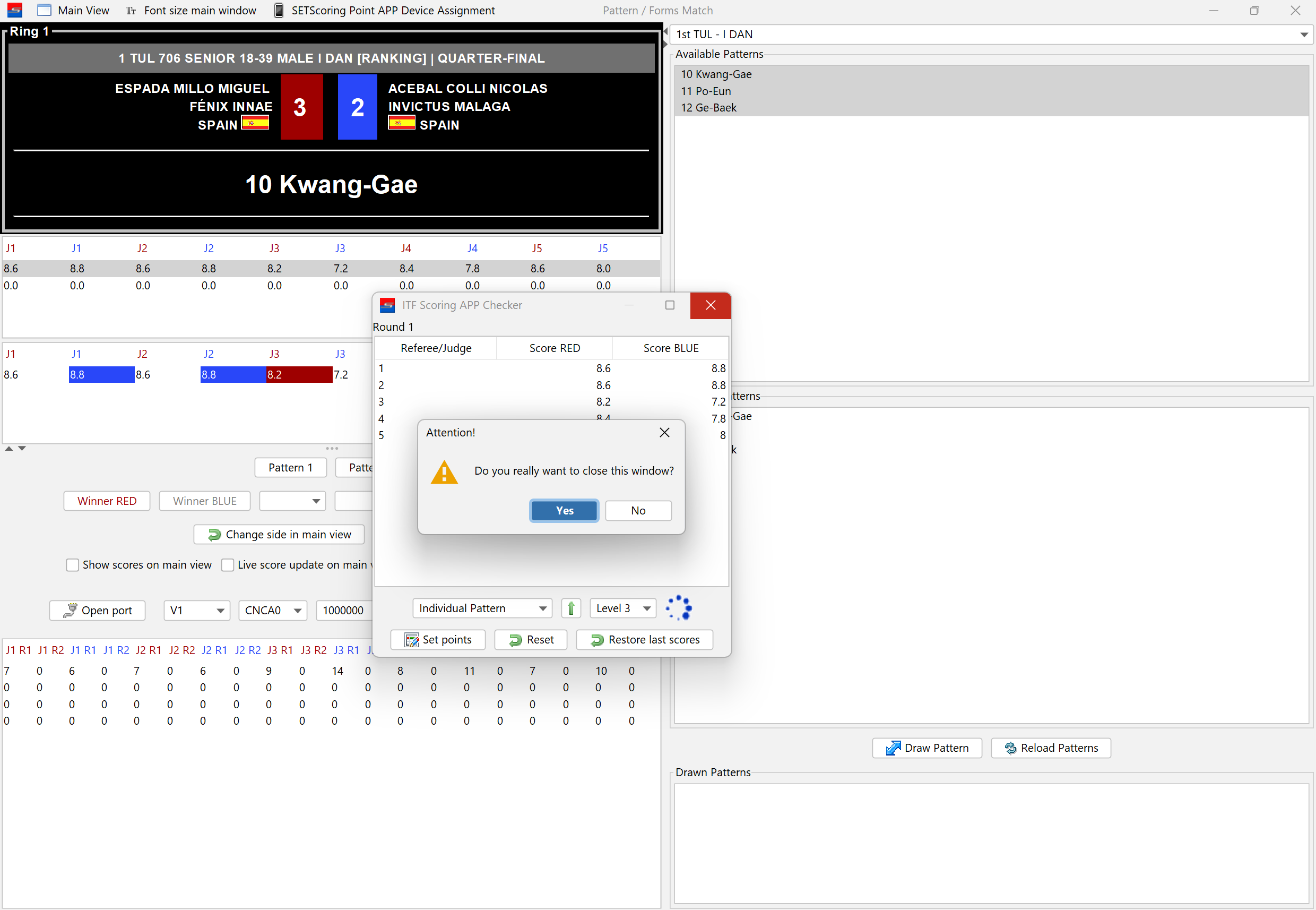

Confirm closing the window by clicking "Yes".

15
/28

Pattern 2

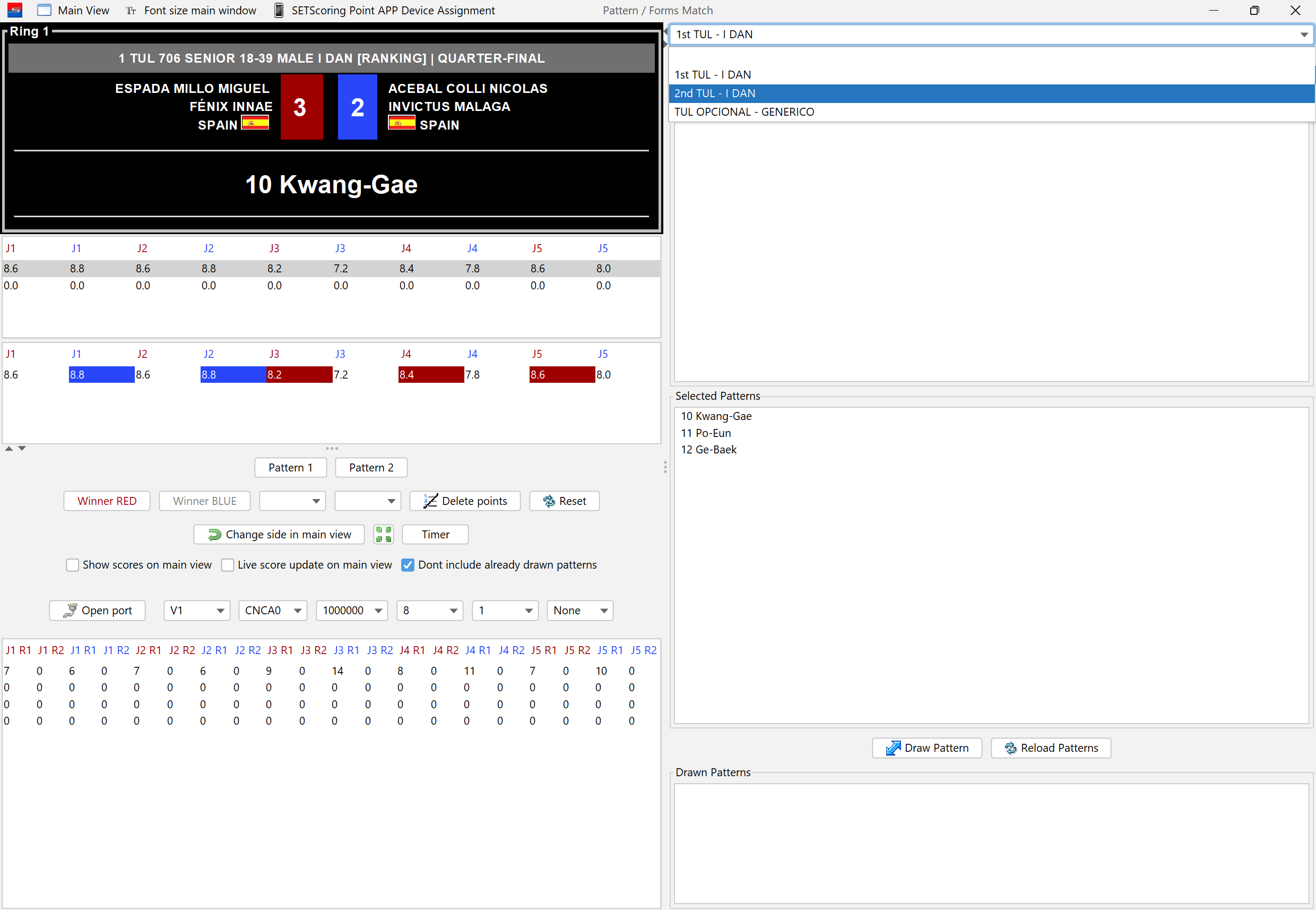

Click on the pre-selected patterns dropdown.

16
/28

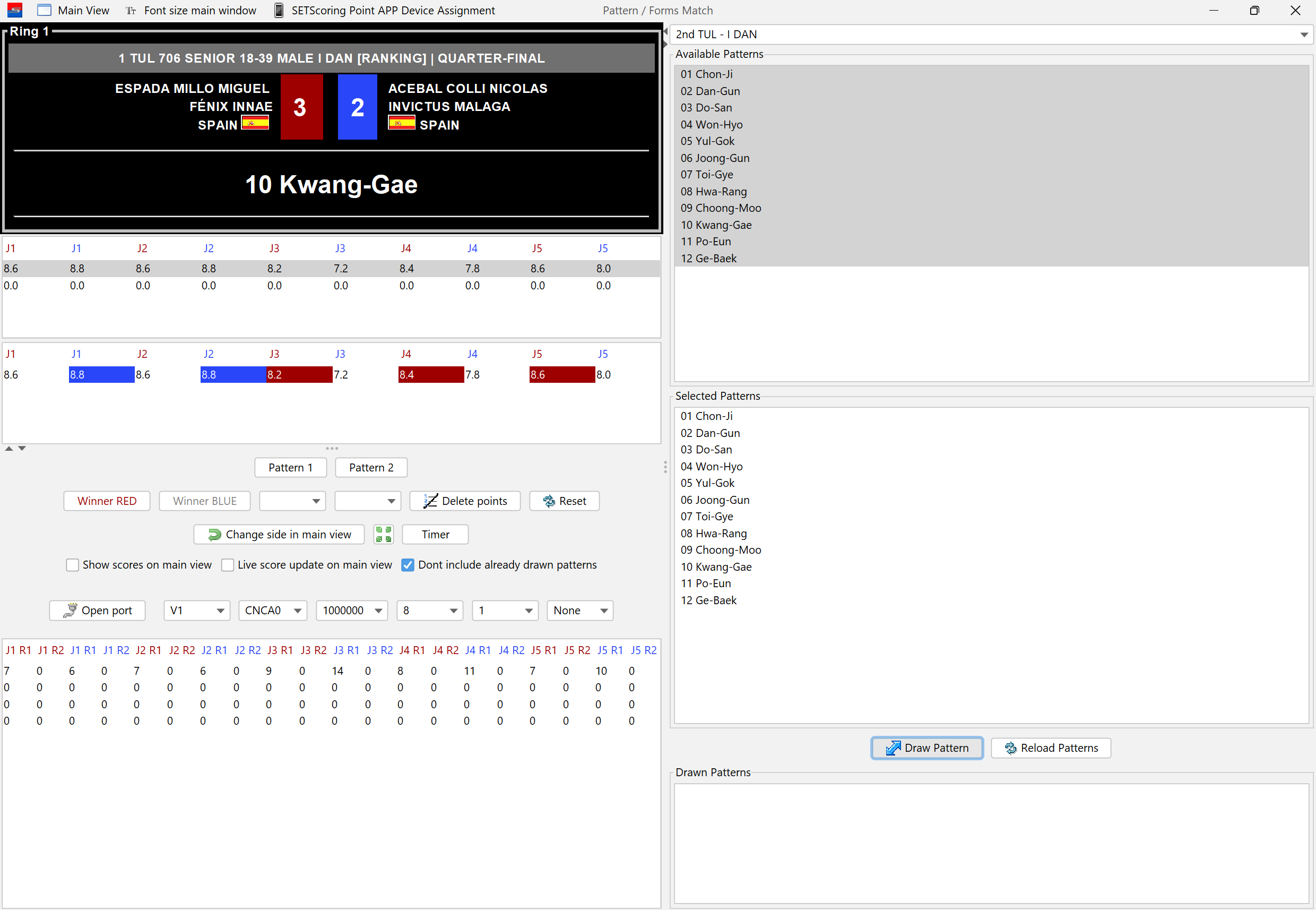

Select Pattern 2 or manually choose patterns to randomly draw the next one to be performed.

17
/28


Click on "Draw Pattern". A pattern that has already been drawn will not be included in this draw.

18
/28

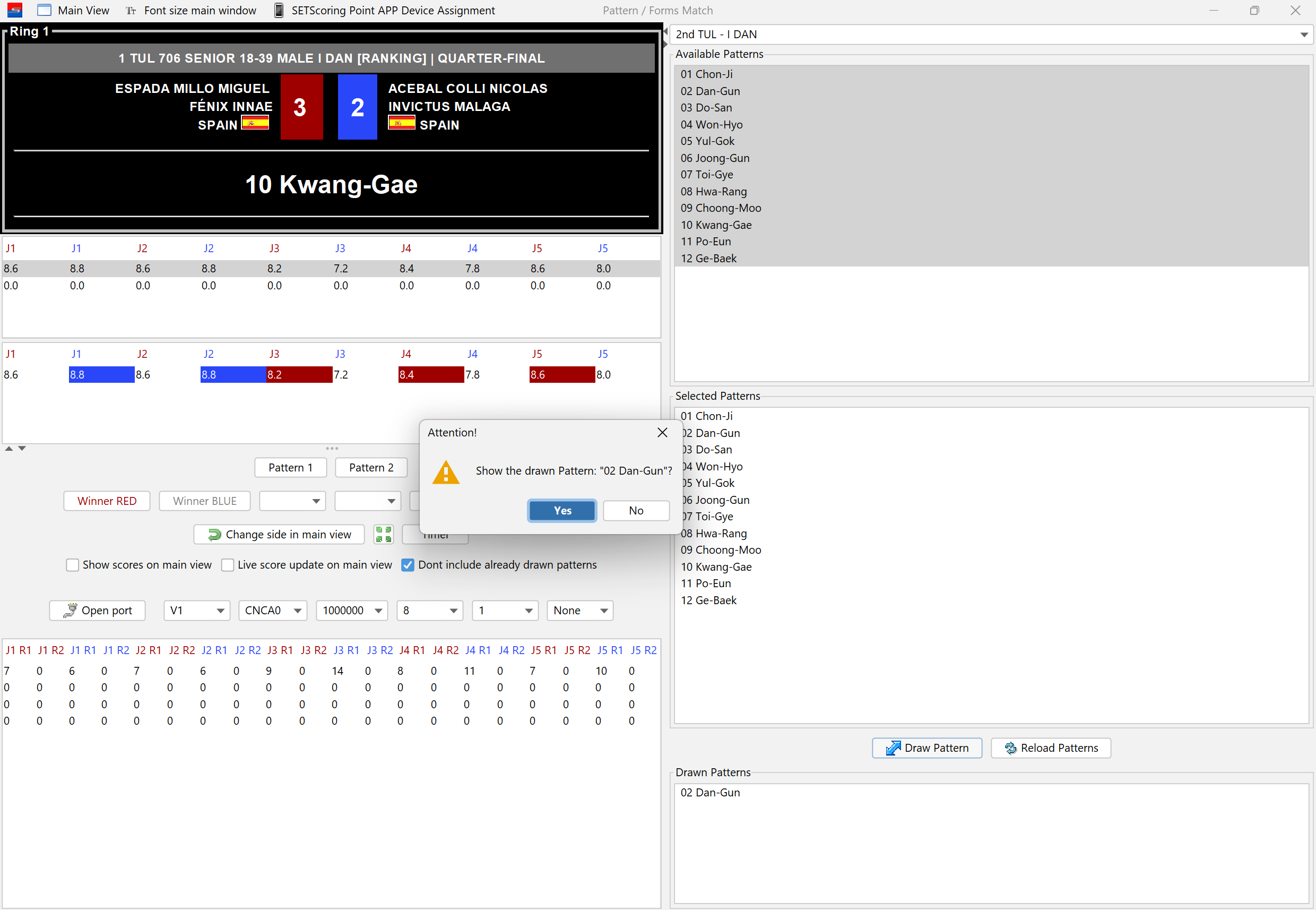

Confirm Pattern 2. It will be displayed on the screen once "Yes" is clicked.

19
/28


Click on "Pattern 2" to open the scores window.

20
/28

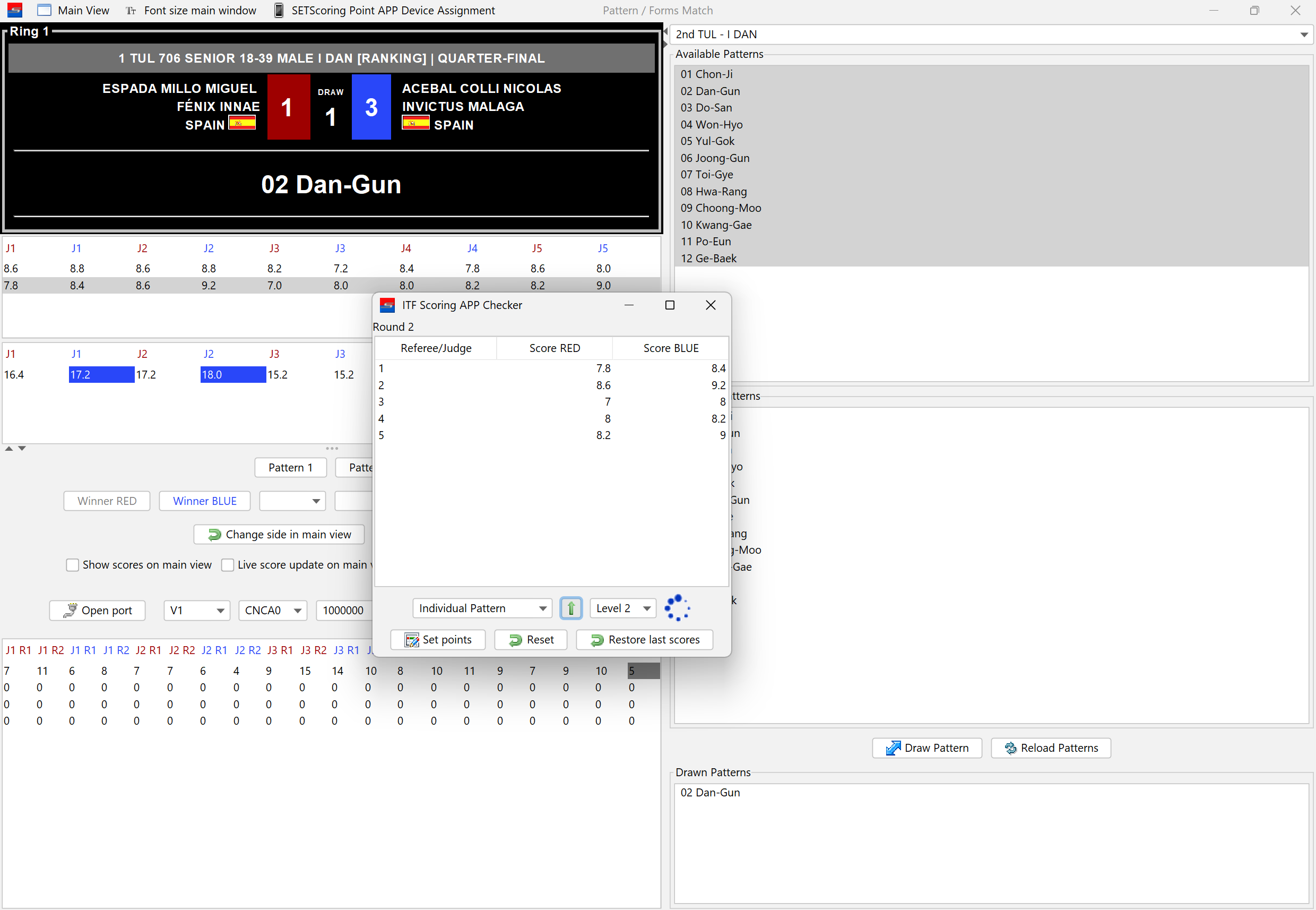

Click on the "Next Level" button when moving to the next level.

21
/28

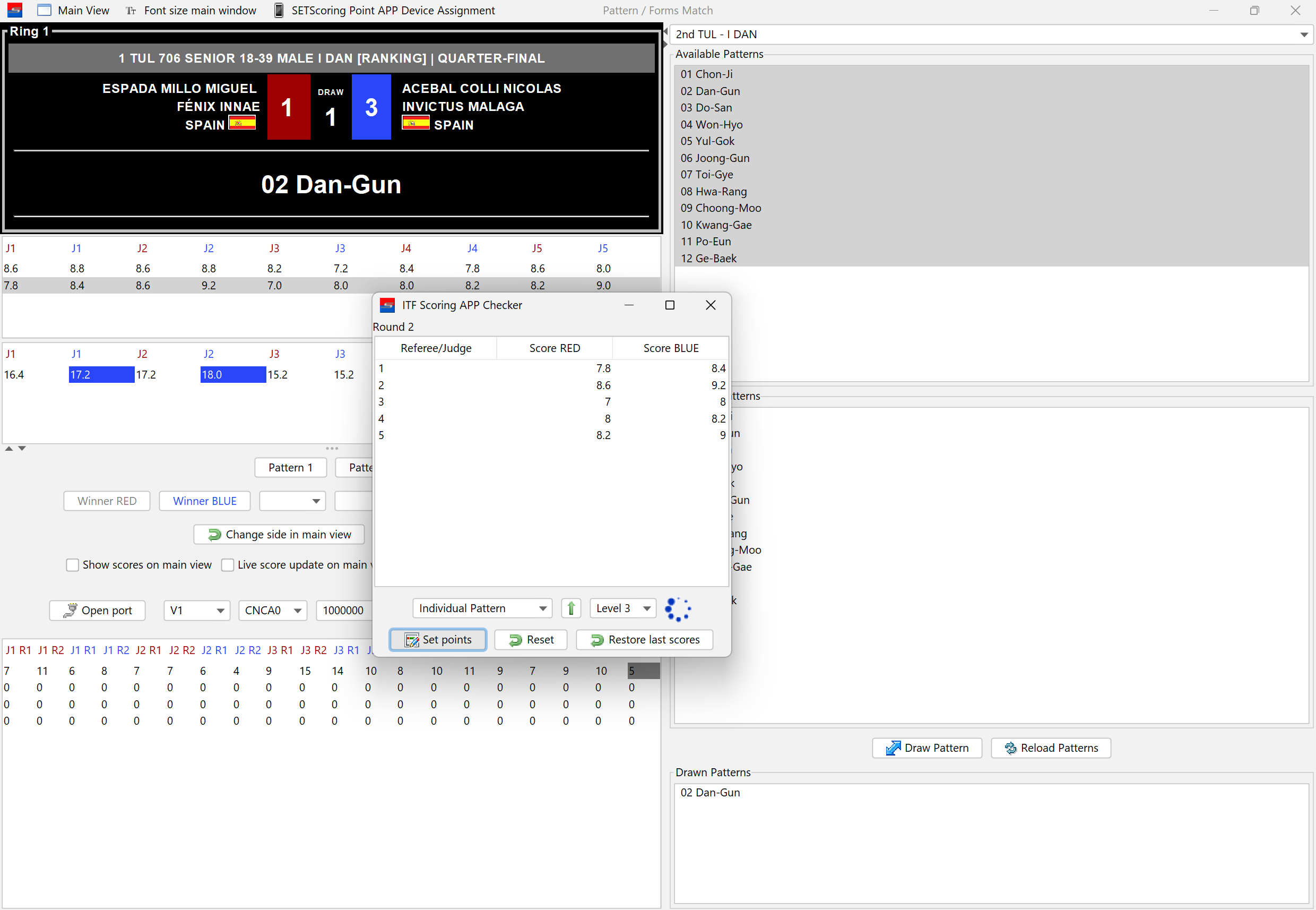

When scoring for Pattern 2 is finished, click on "Set Points". The scores will then be displayed on the main screen.

22
/28


Close the Pattern 2 scores window.

23
/28

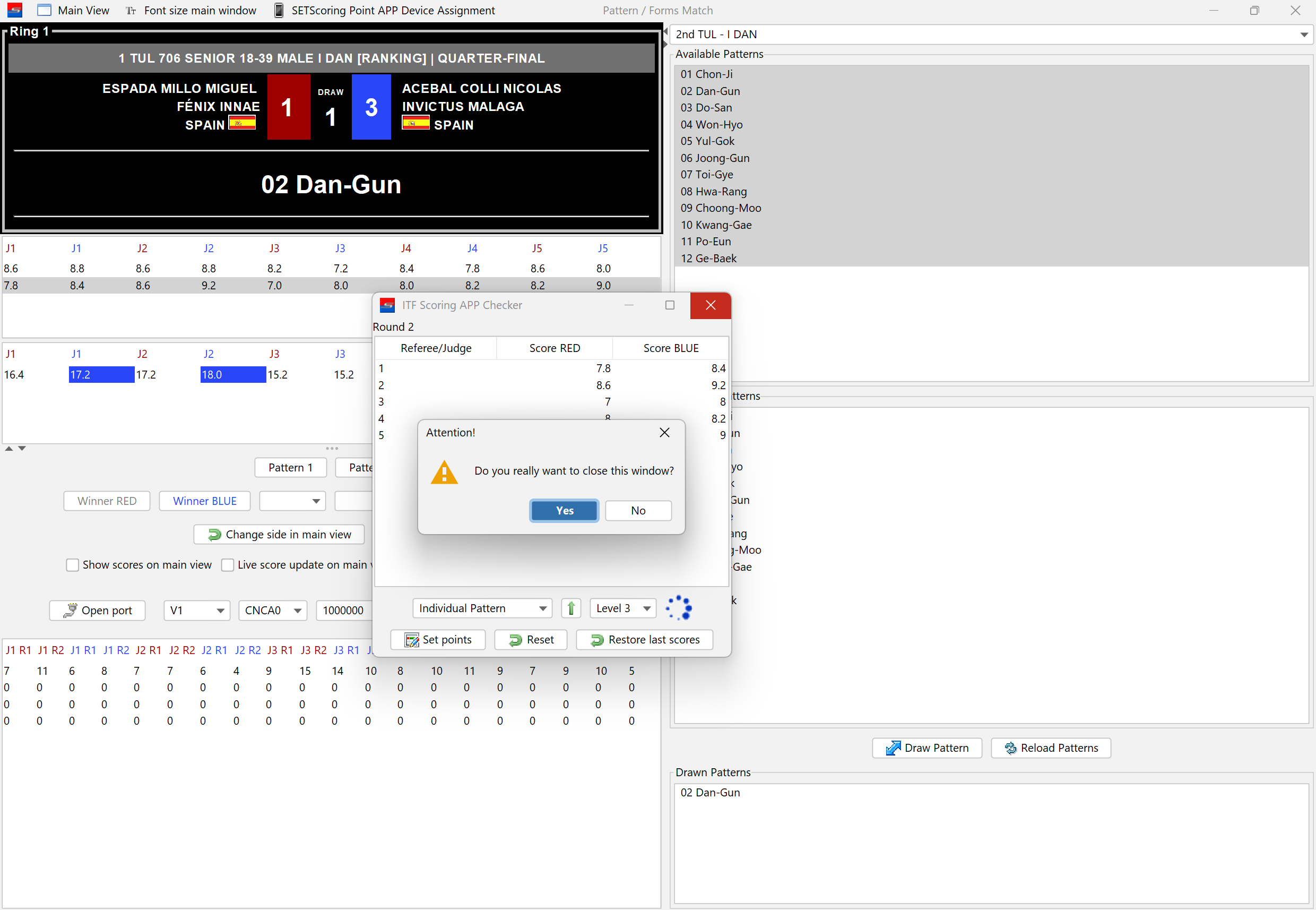

Confirm closing the window by clicking "Yes".

24
/28

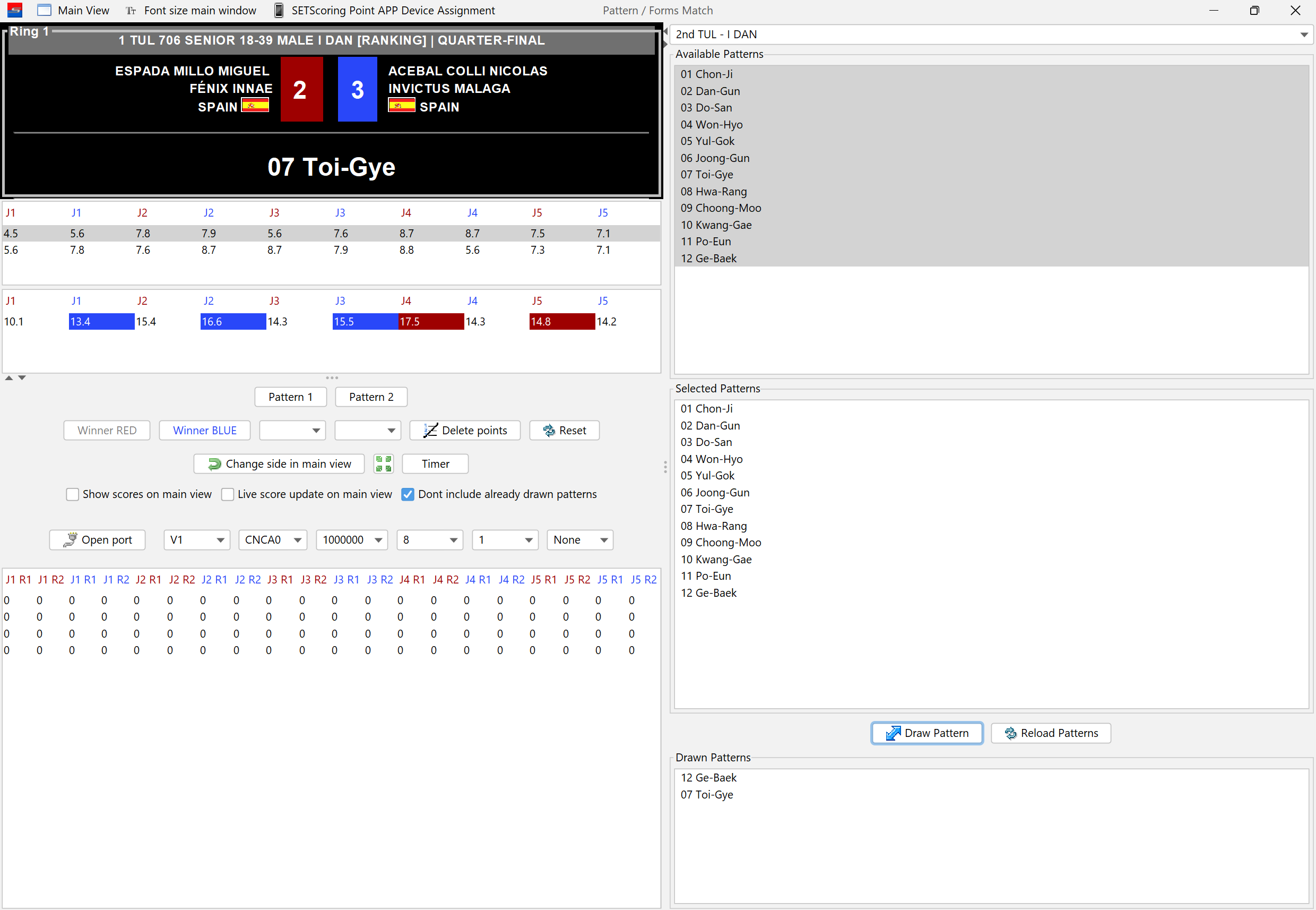

Total scores: Each score is the result from a judge, calculated by summing up the scores from both patterns.

25
/28


Individual scores from each judge for each pattern are displayed. The last row shows the total scores.

26
/28


Click on "Winner RED" or "Winner BLUE" to save the winner.

27
/28


Close the match.

28
/28

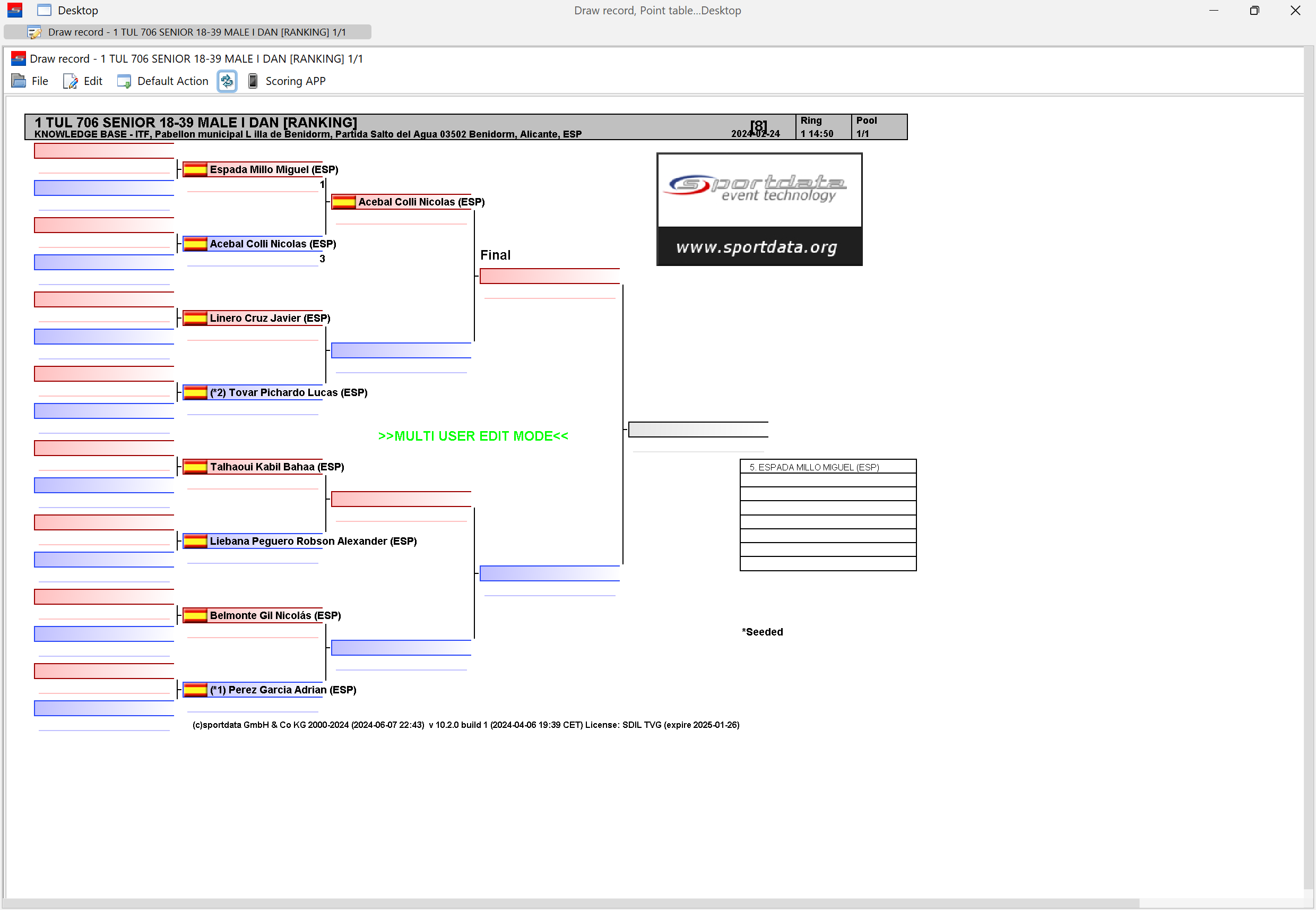

Open the next match and start again.

Thank you!
