SET Scoring Apps
Real-Time, Reliable, and Efficient

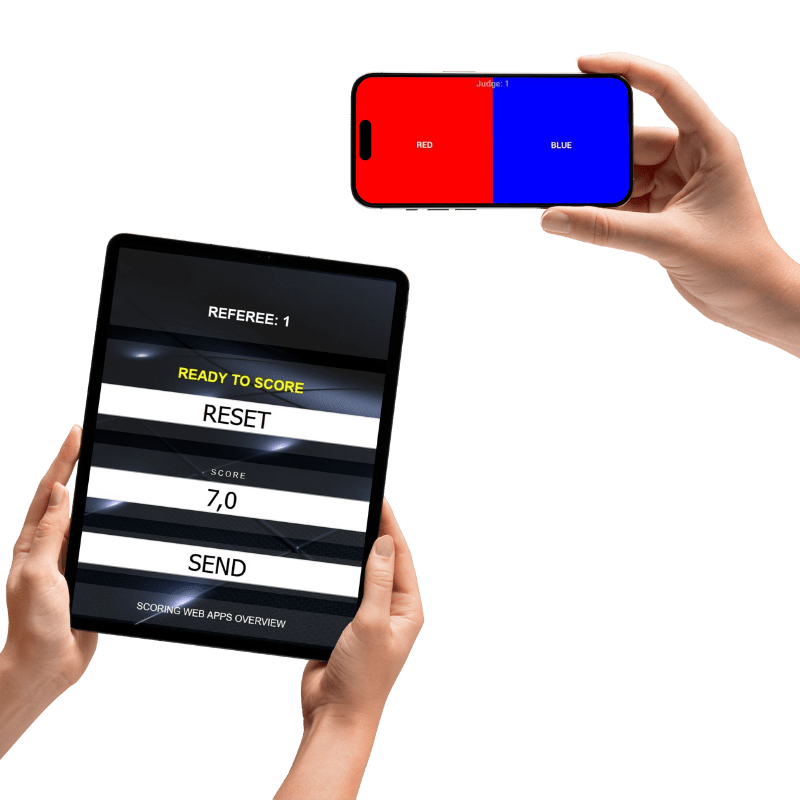

SET Scoring Apps provide a fully digital scoring solution for sports competitions. Designed for tablets and laptops, they enable real-time score input, automatic updates, and smooth integration with our SET OVR competition management systems. SET Scoring apps ensures smooth event operations, enhancing both efficiency and fairness in competitions.
Real-Time Scoring: Instant score updates ensure accuracy and transparency.
Wireless & Flexible: Works over Wi-Fi, reducing the need for extensive cabling.
User-Friendly Interface: Simple and intuitive for referees and officials.
Seamless Integration: Syncs with SET OVR for automated brackets and results.
Reduced Errors: Eliminates manual scorekeeping mistakes.
Live Updates & Broadcasting: Publishes results online for spectators and media.
Web-Scoring App
Scoring Systems : WKF Kata – 2023, WT Poomsae, Wushu Taolu
How to use:
Login to your event in SET OVR on your laptop, and go to your browser on the tablet. They should be connected by WI-FI without internet.

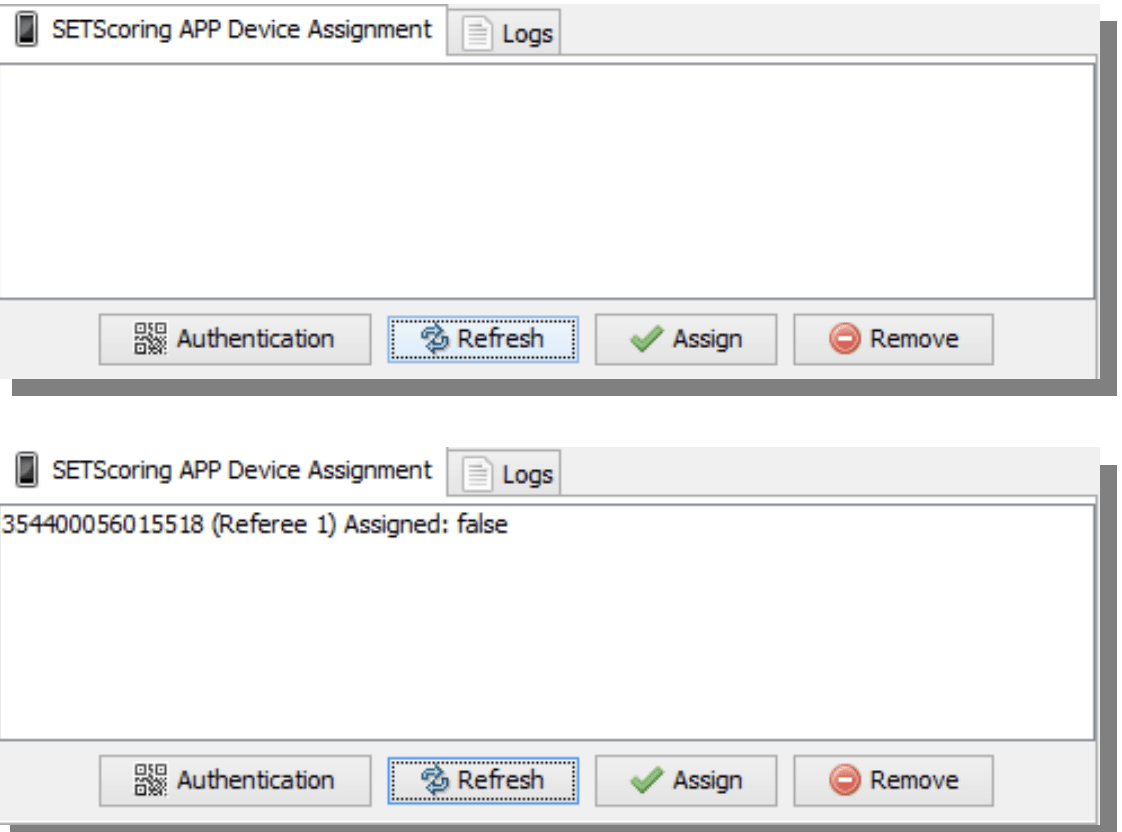

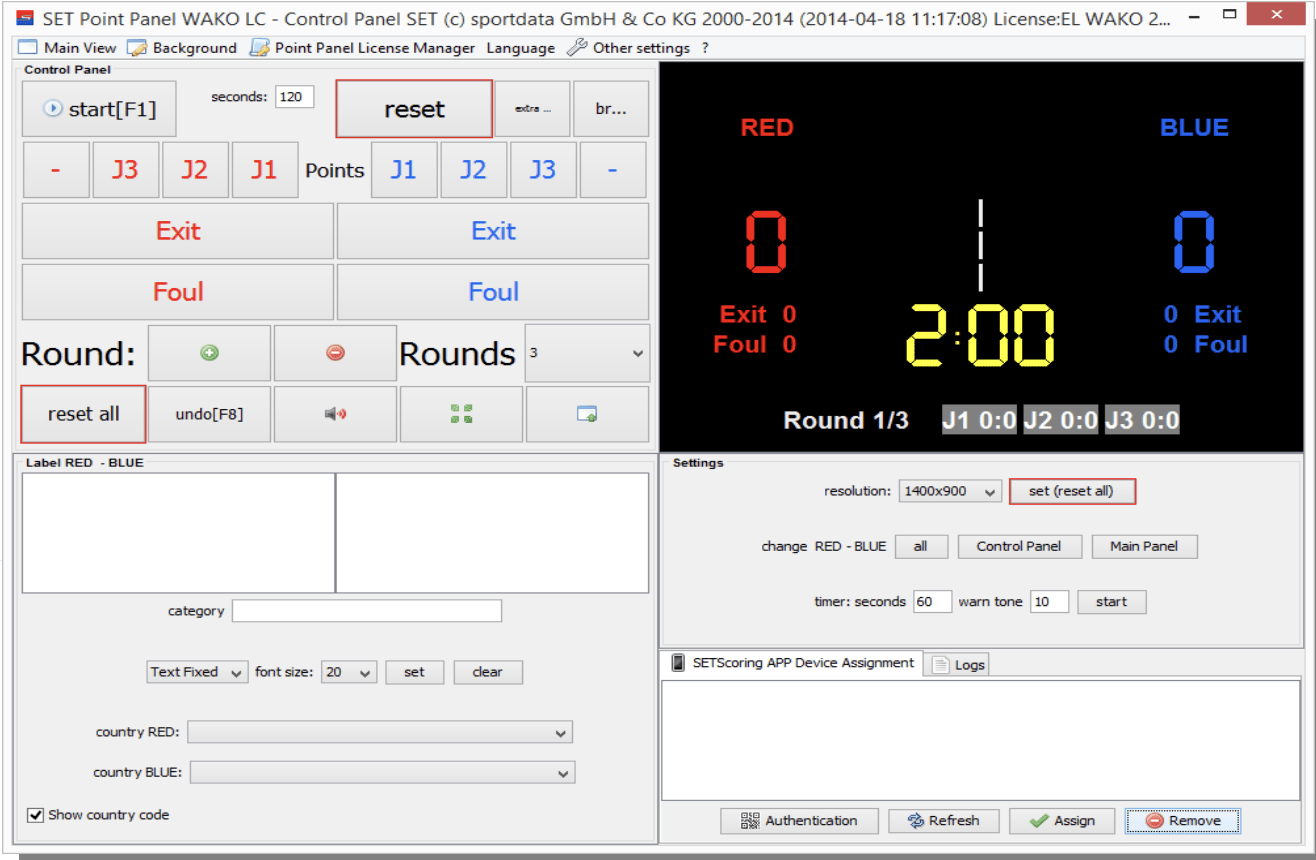

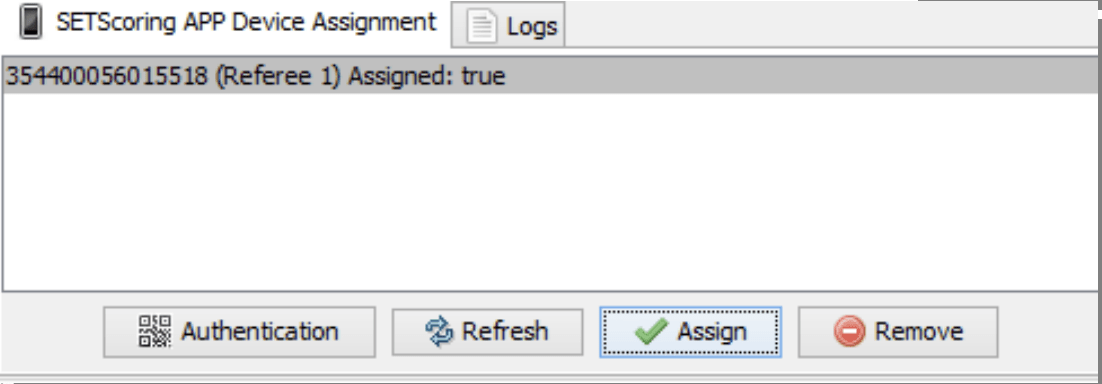

– Open SET OVR on match area laptop and go to point panel and go to set scoring app device assignment

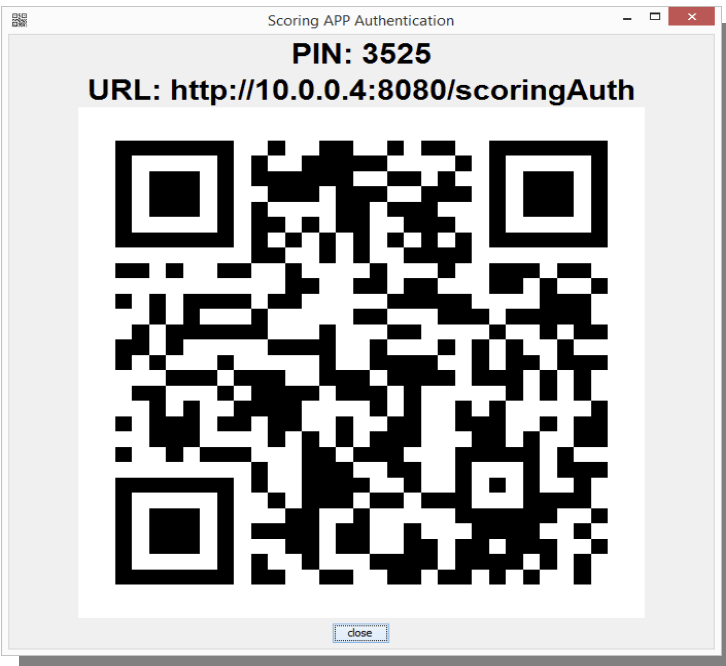

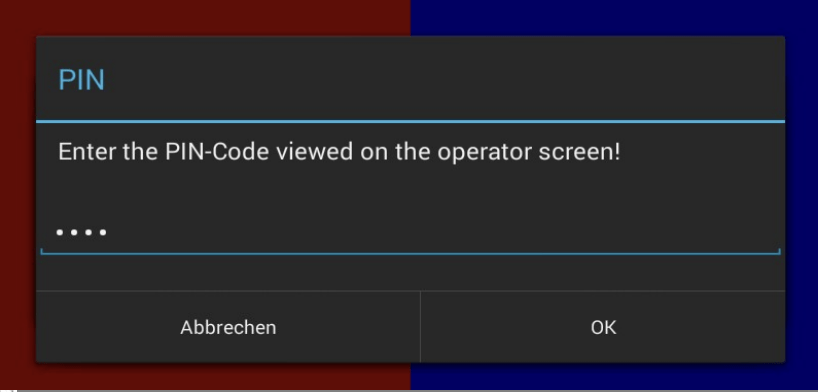

–Authentication Process: A URL will appear in the authentication window on SET OVR, type this into your tablet´s browser. Then, click the mode you wish to use in the web app overview and indicate the judge number, and type the code provided on the laptop screen. note: each time you close and reopen the authentication window the code will change. Confirm authentication on your laptop by refreshing the main panel next to authenticate and the judges will appear. Select the judge and press assign.
SET Scoring App
Scoring Systems: WKF Kata & Kumite – pre 2023, Kickboxing, Wushu -Sanda, ITF Taekwondo, IBA Boxing, MMA, Muaythai, Savate 10:9 Systems and more
How to use:
-Download app in app store onto tablet

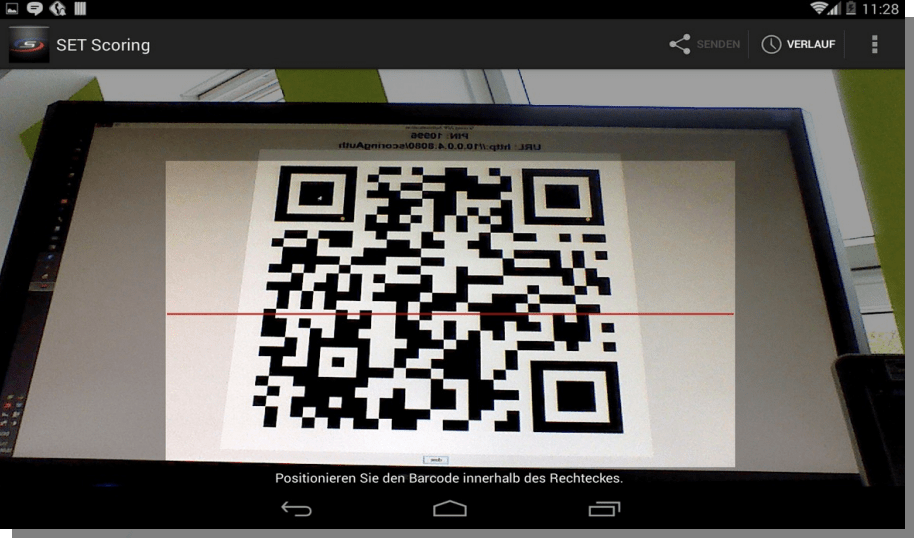

-Repeat the steps for Web Scoring app but instead of typing in the URL scan the QR code by opening the SET Scoring App and pressing new authentication.
Notes:
Point Panel automatically saves the device list, so you don’t need to assign the devices after restart of the software

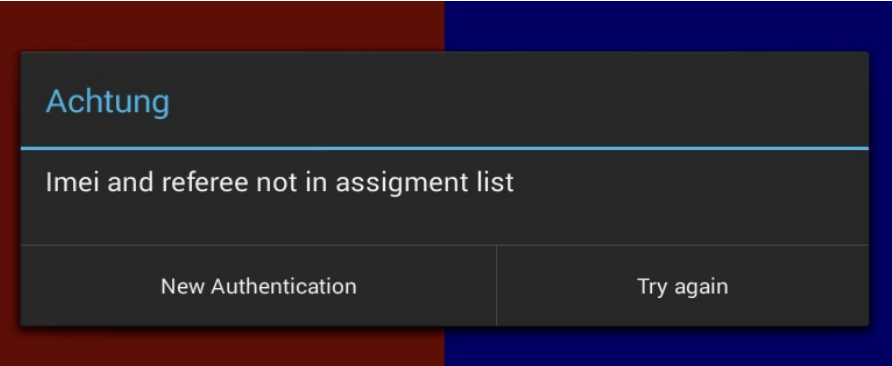

If a referee # is already used by another device, it has first to be deleted from the assignment list
Pre- Conditions
To ensure smooth operation of the web-based SET Scoring App, the following conditions must be met:
Software Installation
-The latest version of the SET Scoring App must be installed from the Google Play Store.
Network Recommendations
-A wired local network is recommended for match area computers.
-Wireless Repeaters should be used on all match areas to improve the wireless connection for scoring devices.
-If your match area router does not support Wireless Repeater mode, you can:
-Disable DHCP on the router.
-Assign the router a static IP address.
-To completely avoid wireless connections, use OTG Pluggable LAN Adapters to connect tablets via LAN cable to the router or switch (see the recommended hardware section below).
Firewall & Security Settings
-All SET Tatami laptops must have their firewall and any antivirus software disabled.
Port Configuration
-The system communicates via Port 8080. Ensure no other software or firewall is blocking this port.

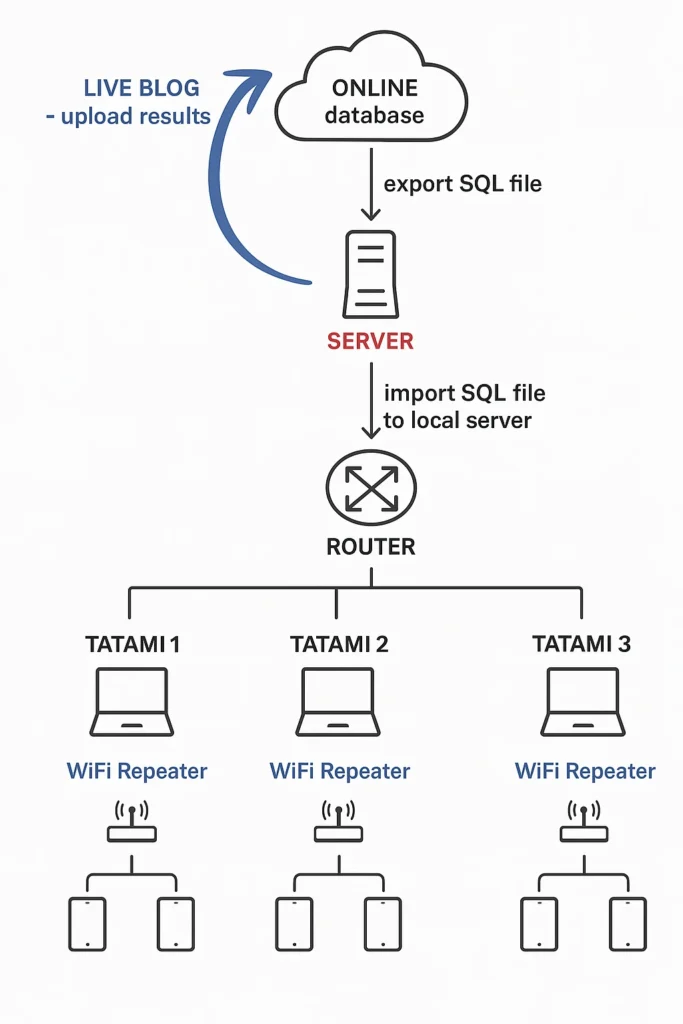

Set Up Diagram
Tablet Minimum Requirements
Performance
Processor (CPU/GPU) → A fast processor ensures smooth operation and quick response times. Look for at least an octa-core processor.
RAM → A minimum of 2GB RAM is recommended
Storage → 64GB+ internal storage is preferable.
Battery Life → 12+ hours of battery life is ideal to last through long events without frequent charging
Connectivity & Networking
Wi-Fi → Support for dual-band Wi-Fi (2.4GHz & 5GHz) for stable network performance.
LAN Support → USB-C or OTG support for Pluggable LAN adapters to ensure wired connections when Wi-Fi is not reliable.
Ports & Expandability
USB-C with OTG support → Enables LAN adapters, external storage, and other peripherals.
Operating System & Software Compatibility
Android Version → Should be Android 11 or newer to ensure compatibility with the latest software updates.
